Pragati Machine Tools: Manufacturers of Automatic Supari Cutting Machines

Pragati Supari Cutting Machine Model	Manual Model	Automatic Model

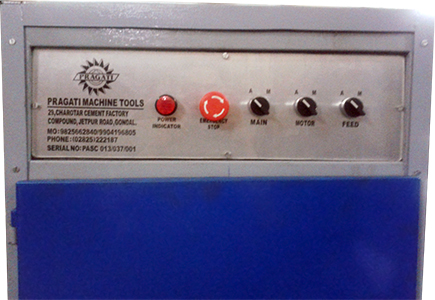

Description	The unique design of this machine makes it possible to produce all types of supari cutting such as round chip cutting, two piece cutting, three piece cutting – all with adjustable thickness. The cutting thickness is managed by keeping a washer of required thickness and adjusting the support blade.	This machine is similar to the mechanical model. A pneumatic feeding unit is used for feeding and pushing the supari for cutting. The pneumatic unit is joined with 0.5 HP cutting motor and a compressor unit, which provides the air flow. The entire pneumatic unit is operated in automatic mode with an electric panel. NOTE: Machine price excludes compressor unit
Types of Supari Cutting
Round Chip Supari Cutting (Gol Patika)
Two Piece Supari Cutting

Three Piece Supari Cutting
Features
Innovative Design
Strong and Sturdy Build
Lower Maintenance
Easy operation and settings
High Production
Good Cutting Design

Lower Wastage in form of Supari Powder/Dust
Technical Specifications
Motor	0.5 HP motor - 1440 rpm, 50 Hz, single phase, foot mounted	1.0 HP motor - 1440 rpm, 50 Hz, single phase, foot mounted
Production capacity	5 to 7 kg/hour	15 to 20 kg/hour
Weight	100 kg	120 kg
Dimensions	Width: 23 inch Depth: 20 inch Height: 21 inch	Width: 22 inch Depth: 40 inch Height: 44 inch

Pragati Machine Tools
29, Cement Pole Factory Compound
Jetpur Road, Gondal - 360 311
(Gujarat - INDIA)
Phone
(02825) 222187
Email
info@suparimachines.com

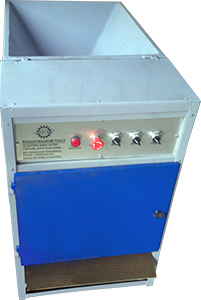

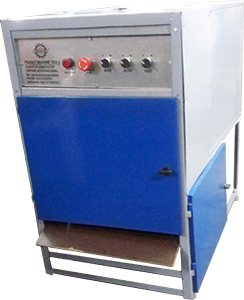

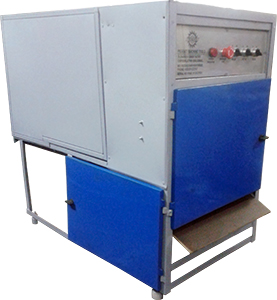

Automatic Supari Cutting Machine
